Control Actuation Systems

High Performance Electromechanical Actuation

Our advanced, high power density Control Actuation Systems are designed to meet the challenging performance requirements for today’s advanced aerospace and weapons platforms.

Our on-site capability to design, test and qualify all unique components, assemblies and software/firmware enables our experienced engineering team to develop customized, high-efficiency electromechanical actuation solutions.

All mechanical, electronic and software elements are fully integrated and suitable for fin or canard control applications and are designed to achieve high slew rates under high loads in extreme environments.

Applications

  • Tactical Missiles
  • Hypersonic Vehicles
  • Torpedoes
  • UUV
  • UAV
  • Guided Munitions
  • Guided Rockets

Datasheet

Download Datasheet

Fill out the form below to download SMA-Fin-Lock

Control Actuation System Capabilities

  • High power density, minimal envelope
  • Fin/canard stow, deploy and locking capabilities
  • High G
  • High temperature thermal environment
  • High power density: 32+ kVA total system output
  • Up to 60 Hz Response
  • Processing, DSP and FPGA
  • Low voltage power supplies
  • Full on-site design & development
  • EMI/EMC circuitry
  • Rapid, accurate response at hypersonic speeds
  • Electromechanical actuation design
    • Rotary (up to 6,000+ in-lbf)
      • Mixed gear solutions
      • Linkage systems (drag link/slider crank)

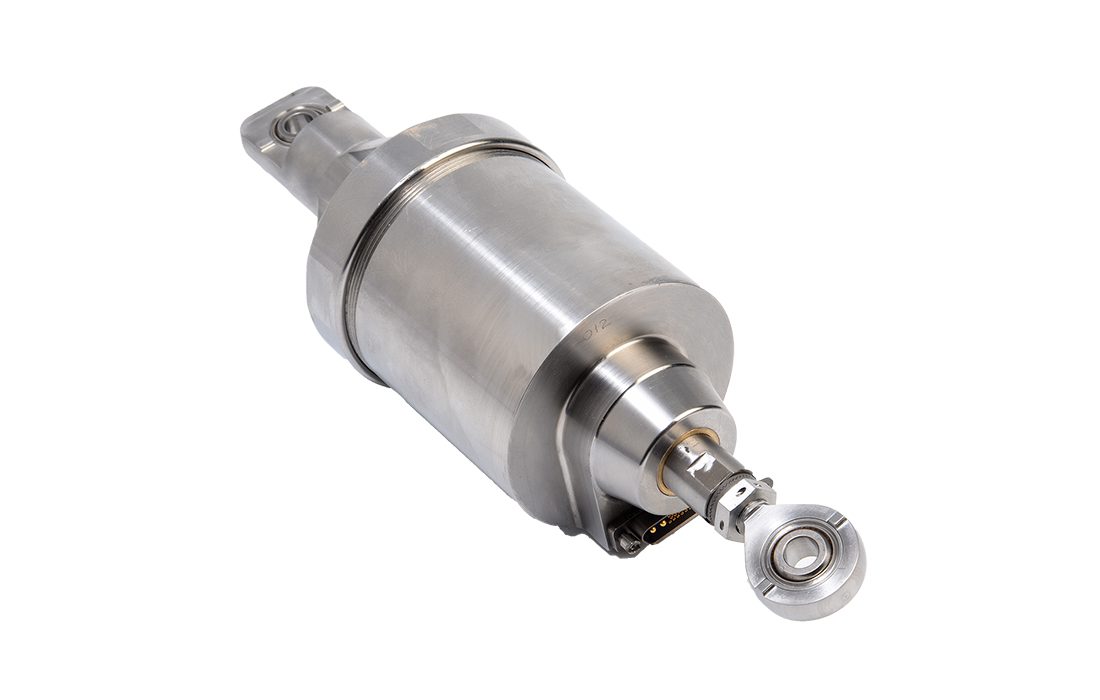

    • Linear (up to 10,000 lbf)
      • Ballscrew
      • Planetary roller screw
      • Jackscrew

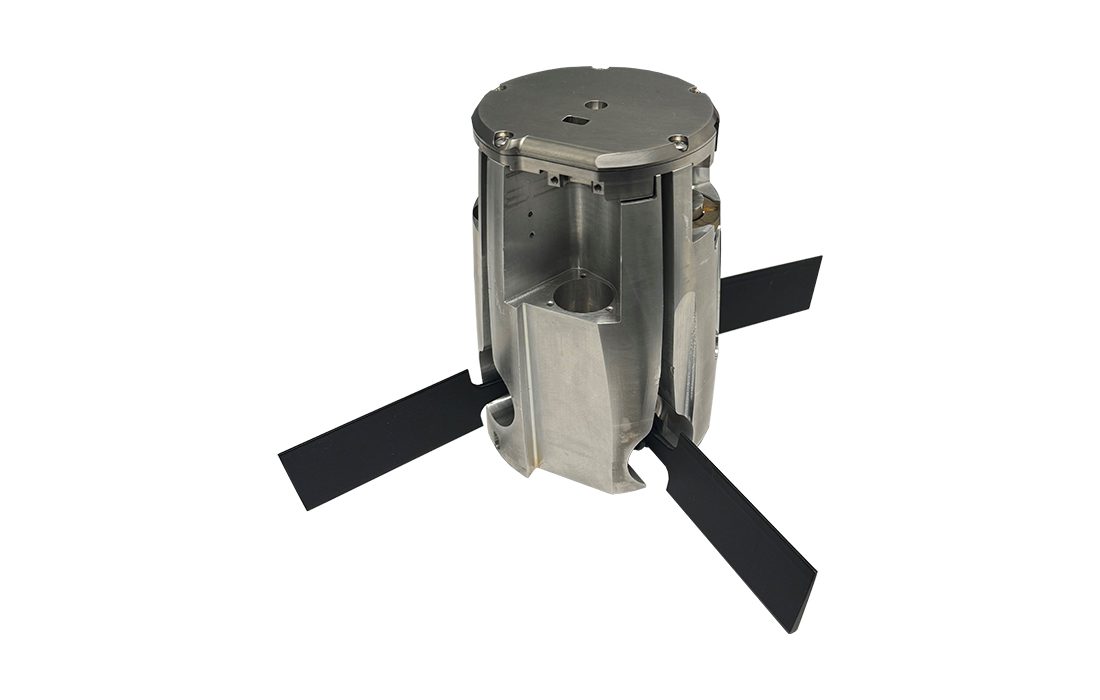

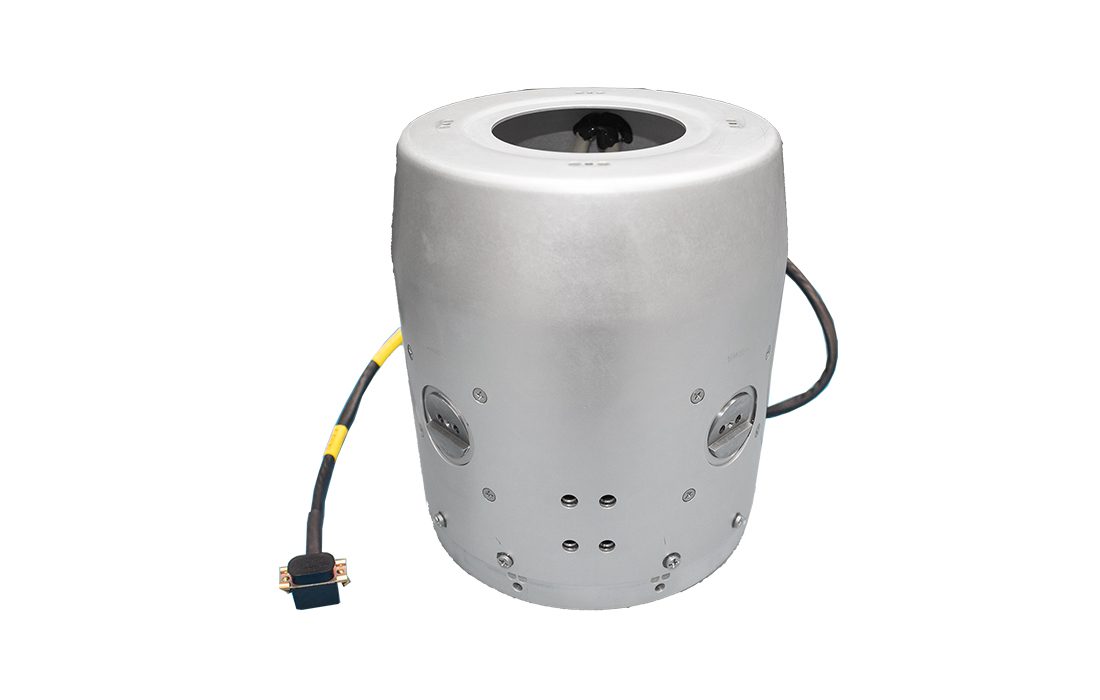

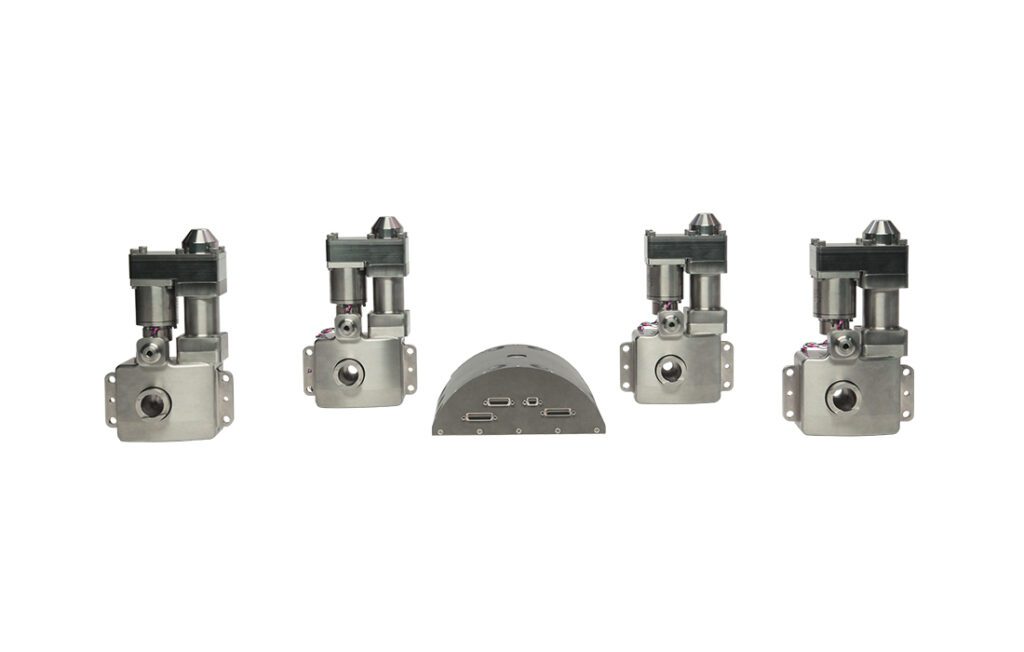

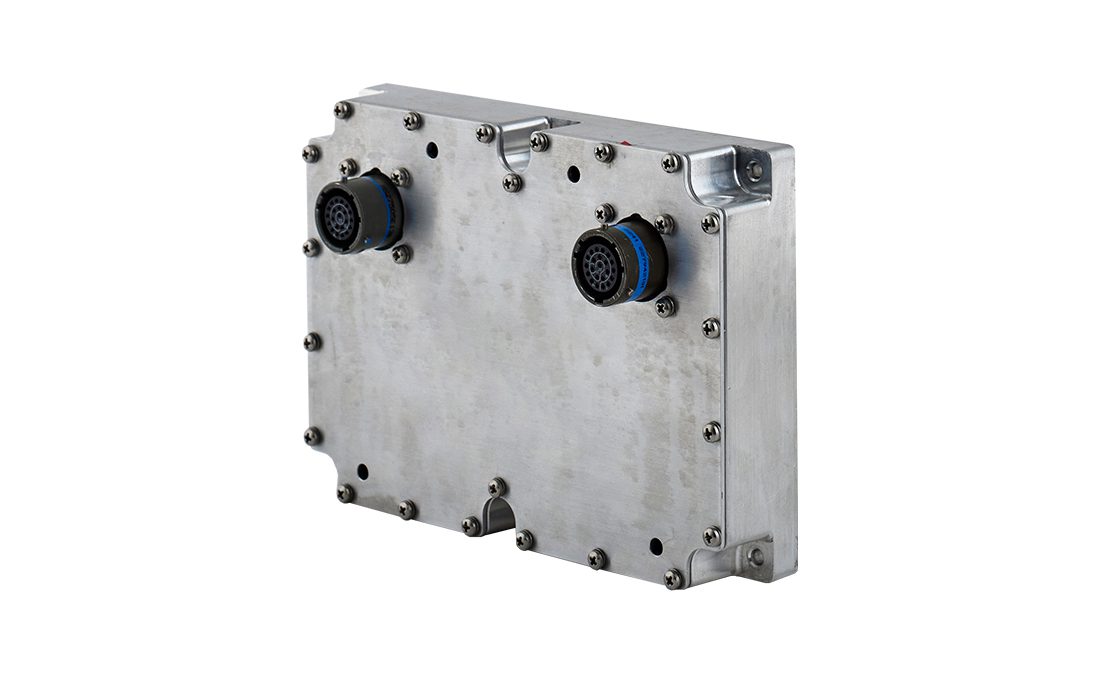

Missile & Torpedo Fin Actuation Systems

Mechanical Features

  • Mixed geared solutions
  • Torque/Speed Ratio: 230:1
  • Fin lock capability
  • 1″ diameter motor

Electronic Features

  • Up to 20 amps per channel
  • DSP Processor
  • Control Type: 4 Quadrant
  • Servo Type: 3 Loop
  • Ruggedized COTS
  • Auxiliary port for downloads and test capability

EMA Performance

  • No Load Slew Rate: > 800 deg/sec
  • Loaded Slew Output Power: > 0.84 HP
  • Stall Torque: >800 In-Lbs
  • Frequency: 50 Hz +/- 1° @ -3 dB
  • Typical Angular Travel +/- 30°

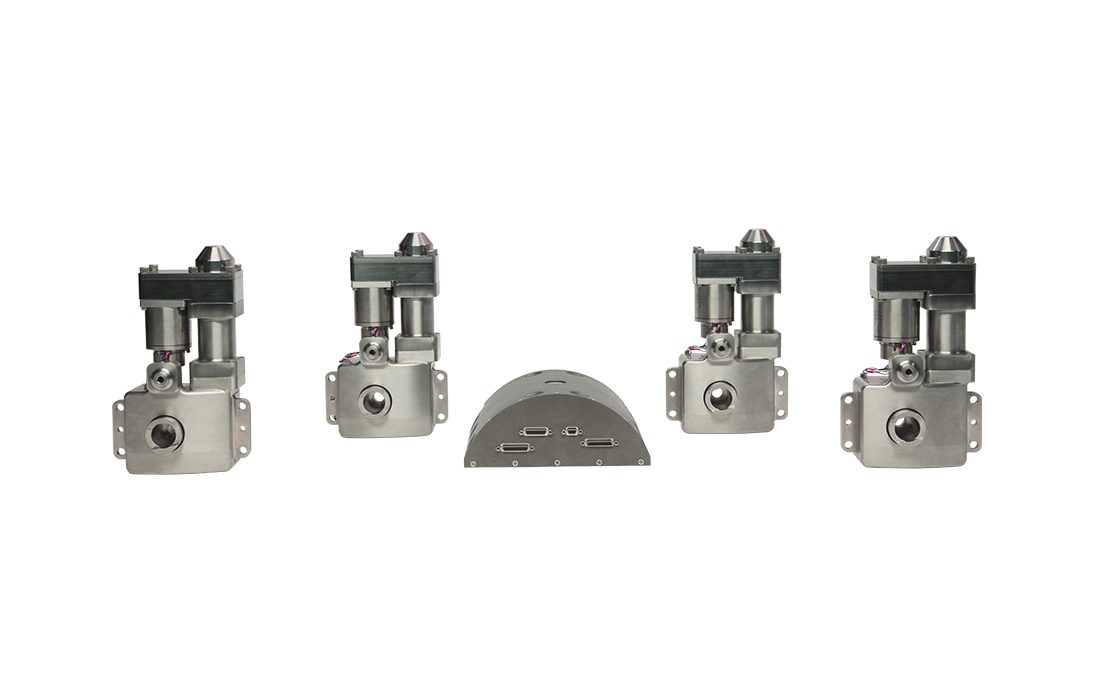

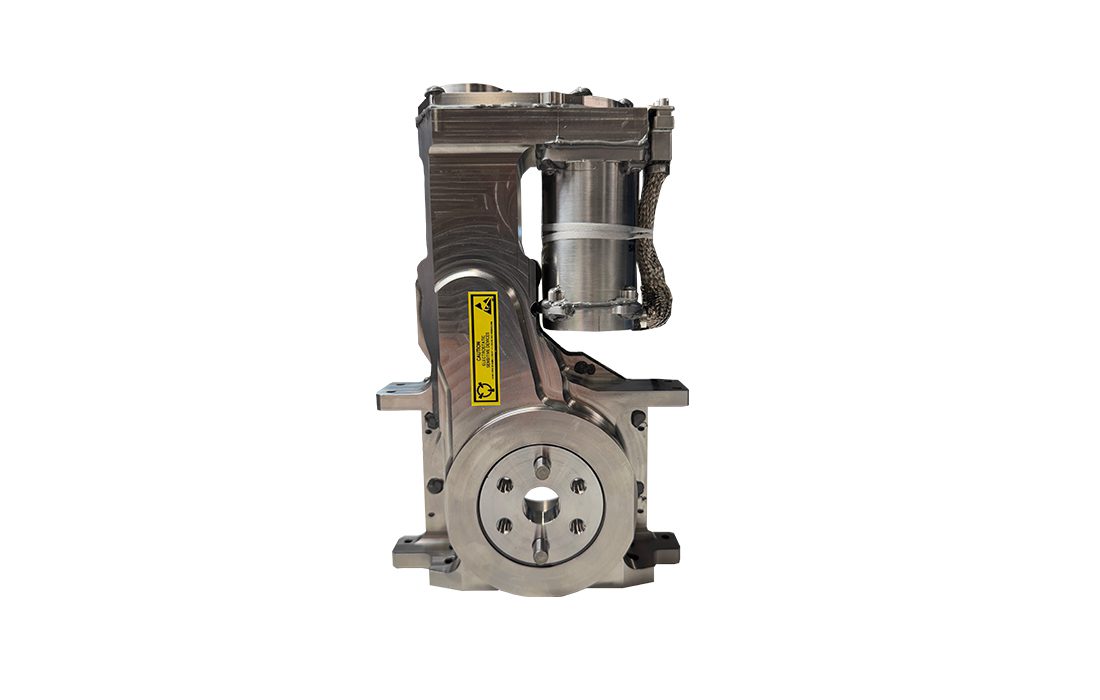

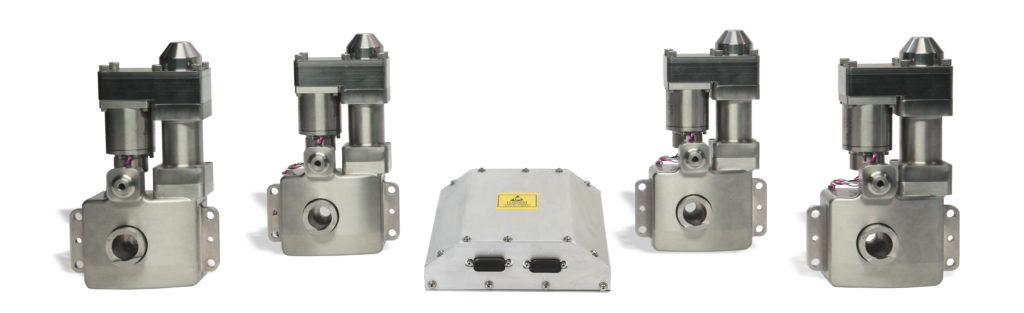

Hypervelocity Control Actuation Systems

Electronic Features

  • 30 amps per channel
  • 4 axis 240V min
  • Control Type: 4 Quadrant
  • Servo Type: Voltage Control
  • Relative position loop
  • Aux port for downloads & test capability

Mechanical Features

  • Mechanical efficiency: 85%
  • < 2.5″ motor diameter
  • Concentric EMA design
    • No gearing

System Performance

  • No Load slew rate >200 deg/sec
  • Loaded slew output power >2.1 HP
  • Stall Torque: 6,720 in-lbs
  • Frequency response: >23 Hz
  • Angular travel: +30°, -10°

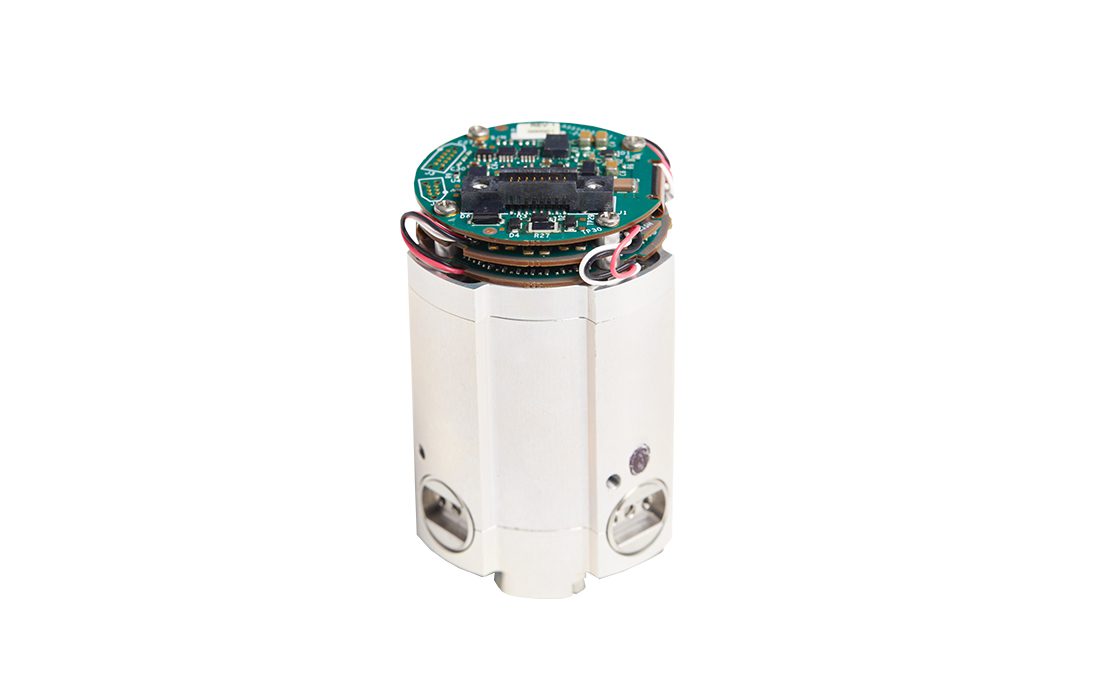

Miniaturized High G Projectile Actuation Systems





Electronic Features

  • 4-Axis 13 to 18V, 1 Amp per channel
  • Servo Type
    • Position Loop
    • Voltage Control
    • Bus Compensation
  • Relative position loop

Mechanical Features

  • Slider/Crank transmission
  • Fin stow, deploy and lock capability
  • Integrated design solution
  • 1.3″ D x 2.0″ L

System Performance

  • High G: > 25,000 G
  • No load slew rate: >1800 deg/sec
  • Loaded slew output power: >0.5 mHP
  • Stall Torque: >0.5 in-lbf
  • Frequency response: 60 Hz, +/- 1º, -3dB
  • Angular travel: +/- 20º

Patented Shape Memory Alloy Fin Lock

The SMA pin puller is a patented technology and has the ability to be unlocked using a non destructive low current pulse which allows a system to be tested in the all up configuration. Once final testing is complete the SMA pin puller can be manually reset to the locked position.

  • Non-pyrotechnic
  • Manually resettable
  • Test mode capabilities
Download Datasheet

Fill out the form below to download SMA-Fin-Lock


On-Site Analysis & Testing Capabilities

Analysis

  • Servo performance
    • Available for 6 DOF support
  • Kinematics analysis
  • Gear train analysis
  • Motor performance analysis
  • Power/Duty Cycle Analysis
  • Circuit analysis
    • Simulation, tolerance, derating
  • Mechanical analysis
    • Stress, thermal, modal/vibration/shock

Servo Model Simulations

  • Bandwidth/Frequency Response
  • Stiffness/Dynamic Stiffness
  • Position Accuracy
  • Stall
  • Step Response
  • Stability
  • Threshold
  • Hysteresis
  • Monte Carlo

Testing Capabilities

  • Proof of Concept
  • Component integration and test
  • System Integration and test
  • ATP and ESS testing
  • HALT/HASS
  • Software qualification
  • Development testing
  • Altitude testing
  • Vibration testing
