1-STEP AC-DC Power Conversion

Unparalleled Power Density

Our patented 1-STEP technology is revolutionizing power conversion with an innovative circuit solution that uniquely achieves 3-phase active power factor correction, power regulation and electrical isolation in a single conversion step .

Engineered to deliver improved conversion efficiency and power density in a simplified topology, 1-STEP ac-dc converter solution reduces weight, size, cost, complexity and risk for mission-critical applications.

1-STEP can be scaled up in parallel to meet any output need such as those required by high-power systems found in next-generation military and commercial aerospace platforms .

Technical Paper

Download Paper

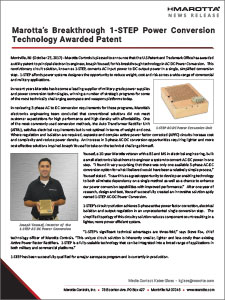

Press Release

Read Full Release

PS1500

Rated at 1,500W (5.5A) steady state with overload to 3 kW for 3 minutes
3-phase, 400 Hz to a regulated and isolated 270 VDC
Short circuit protection
Stiff dynamic load response
Low output voltage ripple of 0.4%
Low weight at 2.4 lbs

Download Datasheet

PS2600

Rated at 2,600W (9.6A) output power
3-phase, 400 Hz aircraft power to regulated & isolated 270 VDC output
Unity power factor
Less than 2% total harmonic distortion
Low in-rush current

Download Datasheet

PS3500

Rated at 3,600W (28 VDC, 400 A) output power
3-phase 115 VAC, 50 Hz to 800 Hz
Qualified for rotary applications
< 2% total harmonic distortion
35% smaller than competitive offerings
30% lighter in weight than competitive offerings

Download Datasheet

PS11200

Rated at 11,200W (28 VDC 400 A) output power
3-Phase 115VAC, 50 Hz to 800 Hz
Qualified for fixed wing and pod applications
10% smaller than competitive offerings
10% lighter in weight than competitive offerings

Download Datasheet

Design Advantages

Unparalleled Power Density
<2% Total Harmonic Distortion
Wild Frequency Input
500W to 150kW Output Power

Near Unity Power Factor
Output Voltage Stepped Up or Down
High Reliability
Inherent Load Sharing
